Resources for PTW Users
This page is designed to provide information for existing users of SKM Power*Tools for Windows (PTW) or other SKM software products. If you do not yet have PTW and would like to learn more, a full description is available here.
Note for all PTW users:
As part of the new SKM server system, all PTW users (new and existing) will have had an SKM account created automatically which is linked to their PTW license.
This happens regardless of whether you have previously registered on the SKM site or not.
Do not be tempted to create a new account on the SKM server as this will not be linked to your PTW license; you would not be able to download PTW updates using the new account.
See the "Downloads" section below for advice on how to log in to the SKM servers for the first time.
As part of the new SKM server system, all PTW users (new and existing) will have had an SKM account created automatically which is linked to their PTW license.
This happens regardless of whether you have previously registered on the SKM site or not.
Do not be tempted to create a new account on the SKM server as this will not be linked to your PTW license; you would not be able to download PTW updates using the new account.
See the "Downloads" section below for advice on how to log in to the SKM servers for the first time.
Downloads: Power*Tools for Windows
Full installation files and update patches are available. The process for downloading PTW, updates and other files has changed. Please follow the procedure below to access downloads:
- Click here to access the My SKM download page
- You will need to log in to the My SKM site. All customers with a valid update and maintenance agreement from CEE are automatically pre-registered with a My SKM account. The password for this site will be different to any passwords used in previous download sites (before April 2018).

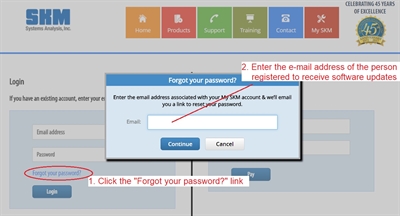

- If you have not used My SKM before, click the "Forgot your password?" link and follow the on-screen instructions. Please note that your company's My SKM account will have been registered to the official contact for software upgrades. If this person has changed since the maintenance agreement was set up, or if a different email address is required, be sure to enter the new details in our Register PTW page.
- Once you have created a new password, keep it secure.
If you are experiencing difficulties with the new download site, please Contact Us for links to the latest downloads.
Do not use the update patches to update from V8.0 to V9.0. The update patches must only be used when updating from one revision of V9.0 to another revision of V9.
If you are updating from one revision to another, after making sure the software isn't already running, simply extract the files into the program directory. Some of these files are self-extracting ZIP files (.EXE), and some are standard ZIP files (.ZIP).
Do not use the update patches to update from V8.0 to V9.0. The update patches must only be used when updating from one revision of V9.0 to another revision of V9.
If you are updating from one revision to another, after making sure the software isn't already running, simply extract the files into the program directory. Some of these files are self-extracting ZIP files (.EXE), and some are standard ZIP files (.ZIP).
If you would like to update your company's contact details, then please visit the Register PTW page of our website.
If you have any problems installing or using PTW, please contact us or see the PTW FAQs section below.
If you have any problems installing or using PTW, please contact us or see the PTW FAQs section below.
Downloads: Other Software
Full installation files can be downloaded from the My SKM servers; see the log-in instructions above. Please note that the "PTW Data Collection" and "PTW Viewer" programs are actually part of the main PTW program.
Therefore:
Therefore:
- Users of PTW Data Collection should download PTW version 8.0 or higher.
- PTW Viewer is available as part of V7.0, V8.0 and V9.0; if your project is being edited using one of the earlier versions, (for example PTW V7) and you wish to keep using V7 then users of PTW Viewer must download PTW version V7.
- GroundMat
- ArcCalc
- Cable_3D
Frequently Asked Questions
The following links display useful articles that might help you to use PTW more effectively. If the answer you are looking for isn't here, then please telephone or contact us and we will be happy to help you. If you need to send us a copy of your project, the best method is to create a backup.
V9.0 of PTW has now been released and many new features have been included. All users with a current update and maintenance agreement are being sent a link to download it. A summary of the differences between version V8.0 and V9.0 is available to download here.
V9.0 of PTW has now been released and many new features have been included. All users with a current update and maintenance agreement are being sent a link to download it. A summary of the differences between version V8.0 and V9.0 is available to download here.
Installation Questions
- Installing PTW
- Installing PTW on a network
- Installing Software Keys
- Installing Software Key Drivers (Windows NT/2000/XP)
- Network driver does not appear to be serving this directory
- No network key server running and no local hardware key found
- Cannot read hardware key ("dongle")
- Selecting Hardware Key or Software Key
- Cannot load the setup or translator library, Microsoft Dbase Driver, *.dbf
- Problems installing the Trial version of PTW
- How do I keep my PTW Format files when I upgrade?
- How do I update PTW License Manager?
- How do I change from a local key to a network key?
- Using a Network key (Red) as a Local key (PTW V6.5 and above)
- Using PTW with Windows Vista (or later)
- Displaying Help files in Windows Vista (or later)
General Questions
- How do I update my hardware key? (e.g. adding new modules)
- How do I delete my PTW Registry Key?
- Backing Up a Project
- How do I renew my Update and Maintenance agreement?
- What changed in version V4.5?
- What changed in version V5.0?
- What changed in version V6.0?
- What changed in version V7.0?
- What changed in version V8.0?
Problems Opening or Using Projects
- PTW crashes on start-up
- Recovering a corrupted Single-Line Drawing (SLD) or Project
- Single-Line Drawings (SLDs) Display Incorrectly
- Unable to Open Project (File Permission Error)
- Error 7001
- Error 155
- Problems Saving SLDs using Windows 2000
- "Datablock Format Not Valid" Error
- Cable size is not available in the Component Editor
- Problems Displaying Crystal Reports
Library Questions
- Mapping Protective Devices (CAPTOR) Library in V6.5
- Where are my Miscellaneous Files stored?
- Where are my Library Files stored?
- Copying devices from one PTW library to another
- Using V3.8 Libraries in V4.0 and higher
- Merging together two libraries
Modelling Questions
- Modelling Induction Generators in PTW
- What are the differences between SB, PV and PQ generators?
- Running Transient Motor Starting (TMS) studies
- My TMS study won't converge
- Modelling Source Impedance in PTW
- Modelling Capacitance in PTW
- Modelling Neutral Earthing (Zig-Zag) Transformers in PTW
- Using Diversity Factors in PTW
- What are the differences between I*SIM's algebraic model, and its flux level model?
- Using the Differential function in PTW
- Using the Directional function in PTW
- Using the Summation function in PTW
- How do I enter impedance data for a 3-winding transformer?
Single-Line Diagram Questions
- Changing component symbols
- Creating intelligent symbols for transformers
- Colouring components on SLDs
Study Questions
- Differences between short circuit calculations in Arc Flash and Comprehensive Study modules
- Why is the single-phase short-circuit current higher than the three-phase short circuit current?
- "System Topology not Defined" Error when running balanced system studies
CAPTOR Questions
Report and Datablock Questions
Training Courses
Are you a new PTW user or do you just want to brush up your skills? Maybe you have just purchased a new module and need to know how it works. CEE Relays can offer training courses tailored to your specific needs.
Courses are generally between one and four days in length and fall broadly into one of two categories:
An Introduction to PTW
Intended for novice users of PTW who want to start being productive as quickly as possible. Covers essential topics such as populating the Single-Line Diagram view, entering equipment data and running studies. Notify us in advance if your delegates have previous experience of similar programs or older versions of PTW so that we can adjust the course content accordingly. The exact course programme will vary depending on which PTW modules you have purchased.
Advanced Techniques
Intended for experienced users who want to get more out of PTW or find themselves modelling particularly complex or unusual projects. Notify us in advance if there are any specific topics you would like your course to cover.
We can run training courses either at your premises or at our head office in Slough. Durations depend largely on how many PTW modules you are using and how many delegates you wish to send. We recommend that all delegates are of roughly the same level of experience with PTW; it is inadvisable for novices and experienced users to attend the same course.
Please contact us if you would like to find out more.
Courses are generally between one and four days in length and fall broadly into one of two categories:
An Introduction to PTW
Intended for novice users of PTW who want to start being productive as quickly as possible. Covers essential topics such as populating the Single-Line Diagram view, entering equipment data and running studies. Notify us in advance if your delegates have previous experience of similar programs or older versions of PTW so that we can adjust the course content accordingly. The exact course programme will vary depending on which PTW modules you have purchased.
Advanced Techniques
Intended for experienced users who want to get more out of PTW or find themselves modelling particularly complex or unusual projects. Notify us in advance if there are any specific topics you would like your course to cover.
We can run training courses either at your premises or at our head office in Slough. Durations depend largely on how many PTW modules you are using and how many delegates you wish to send. We recommend that all delegates are of roughly the same level of experience with PTW; it is inadvisable for novices and experienced users to attend the same course.
Please contact us if you would like to find out more.
